TT
Reference Series: RTA, RTC, RTF, RTR, RTU
Connectors for homeowner / D.I.Y. Projects.
TTA12-TZ - an angle connects two 1x wood members at 90° angles.
TTA2-TZ - an angle connects two 2x wood members at 90° angles.

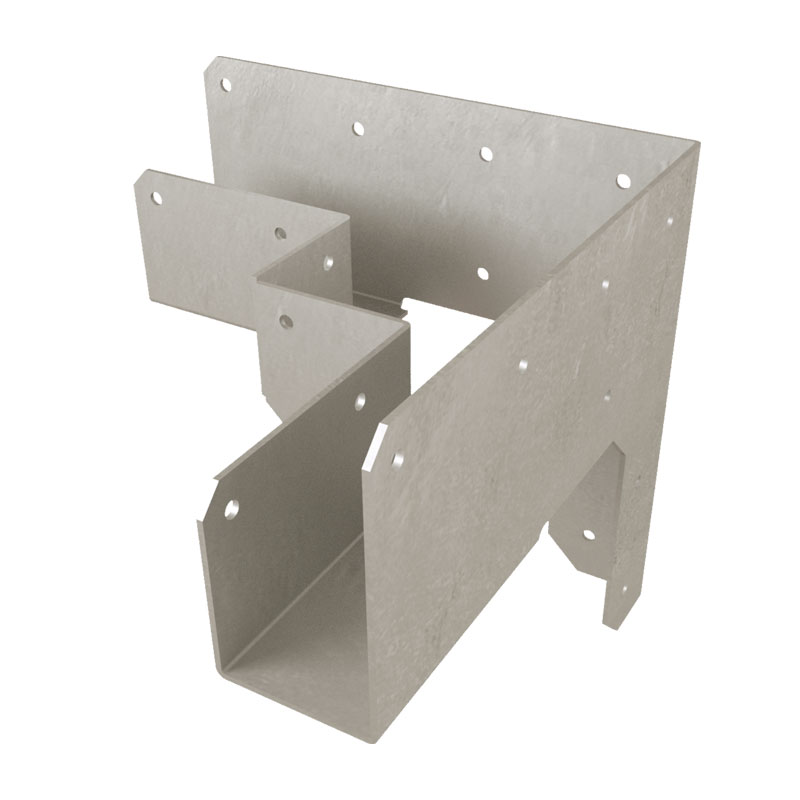

TTC42-TZ - a corner tie connects 2x wood members at 90° to the corner of a 4x4 post.

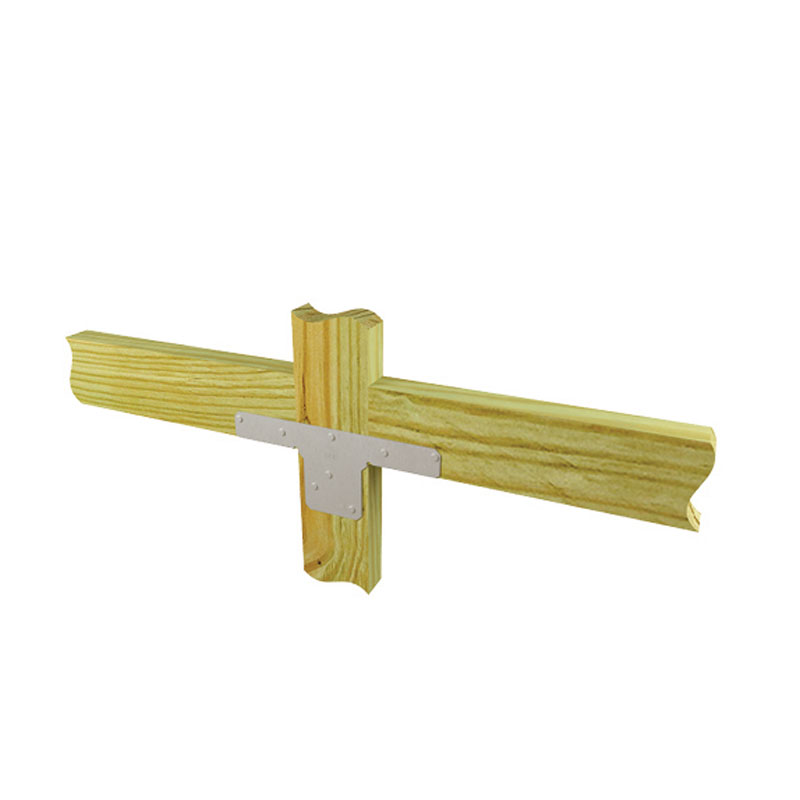

TTF22-TZ - a bracket connects 2x wood members to opposite sides of a 2x4 or 4x4 post.

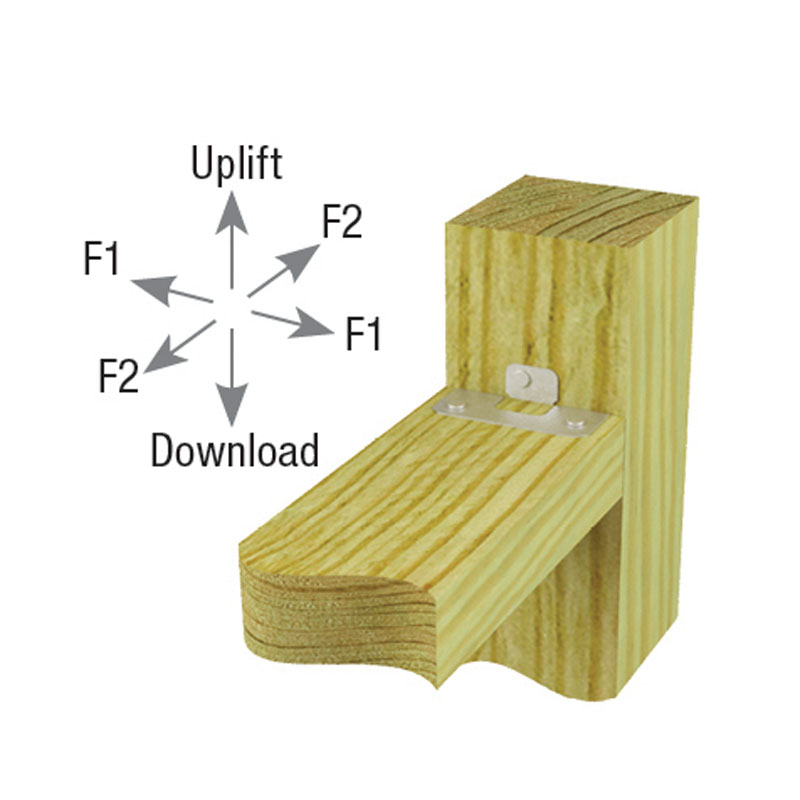

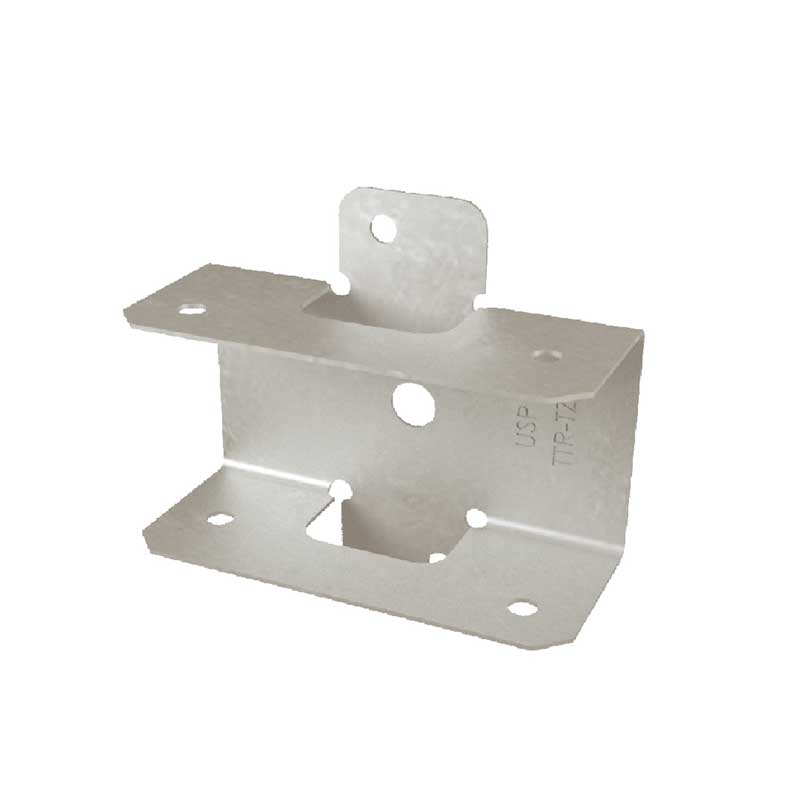

TTR-TZ - a clip connects a 2x wood member to the face of another wood member.

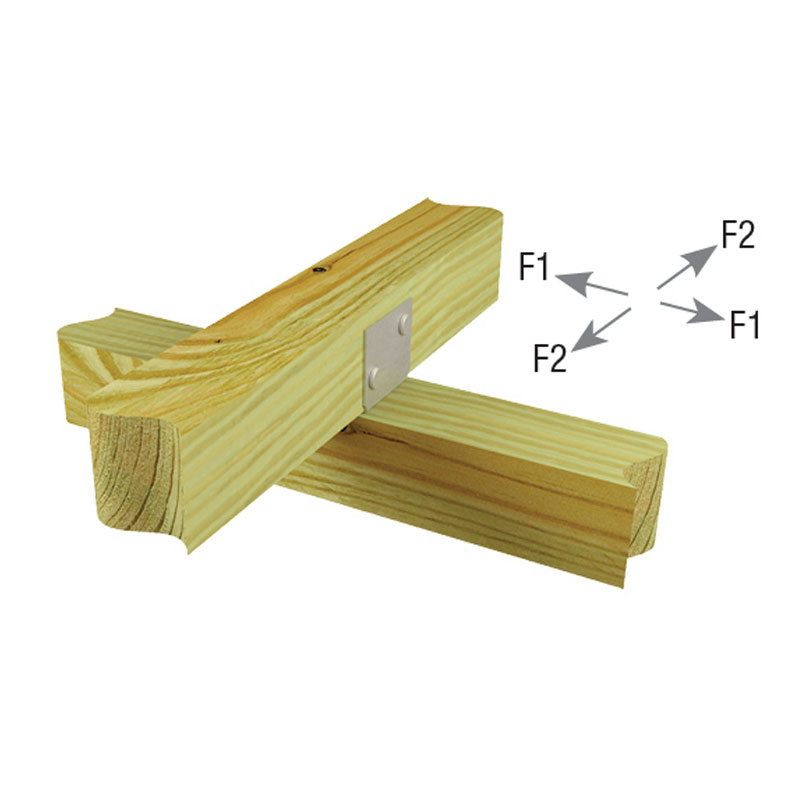

TTU2-TZ - a U-clip connects 2x wood members crossing at 90°.
TTA12-TZ - an angle connects two 1x wood members at 90° angles.
TTA2-TZ - an angle connects two 2x wood members at 90° angles.
TTC42-TZ - a corner tie connects 2x wood members at 90° to the corner of a 4x4 post.
TTF22-TZ - a bracket connects 2x wood members to opposite sides of a 2x4 or 4x4 post.
TTR-TZ - a clip connects a 2x wood member to the face of another wood member.
TTU2-TZ - a U-clip connects 2x wood members crossing at 90°.

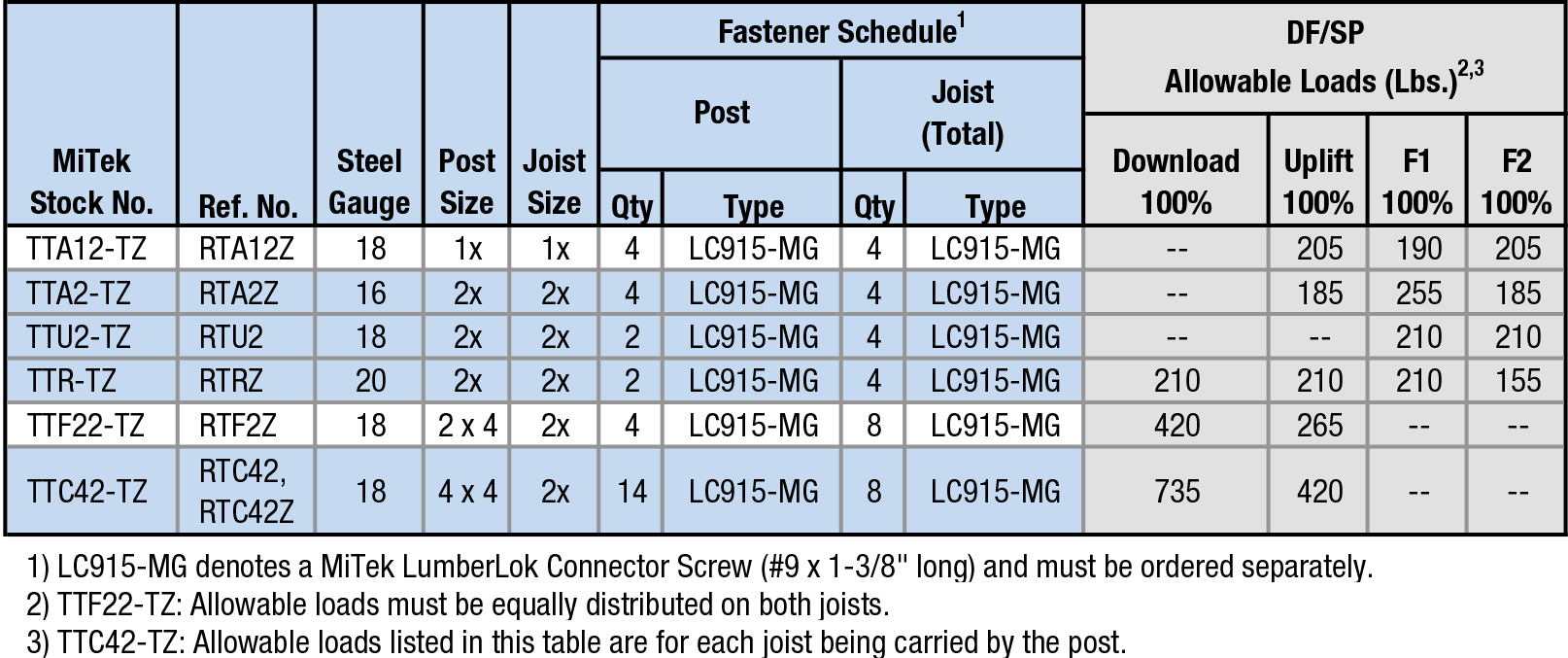

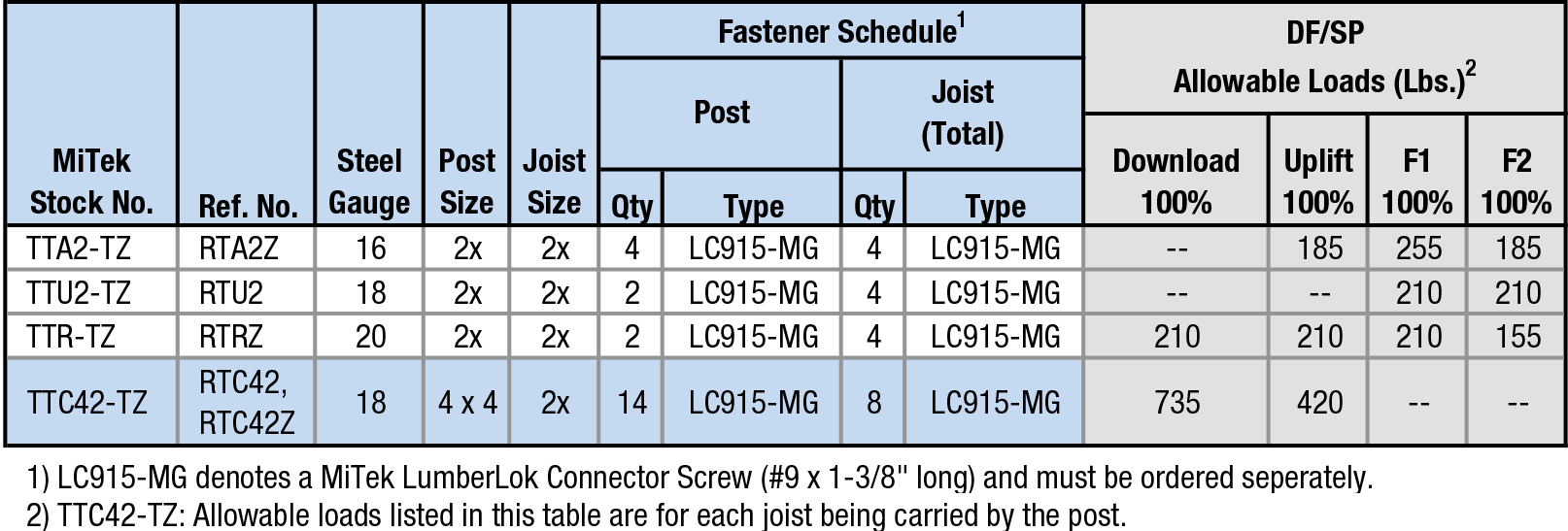

Materials: See Load Table
Finish: G-185 galvanizing
Code Reports:
View Code Report Table
Resources
MiTek Product CatalogTechnical Bulletins
Installation
- Use all specified fasteners.
- MiTek LumberLok LL915 (#9 x 1-3/8″ long) wood screws are not supplied with connectors.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

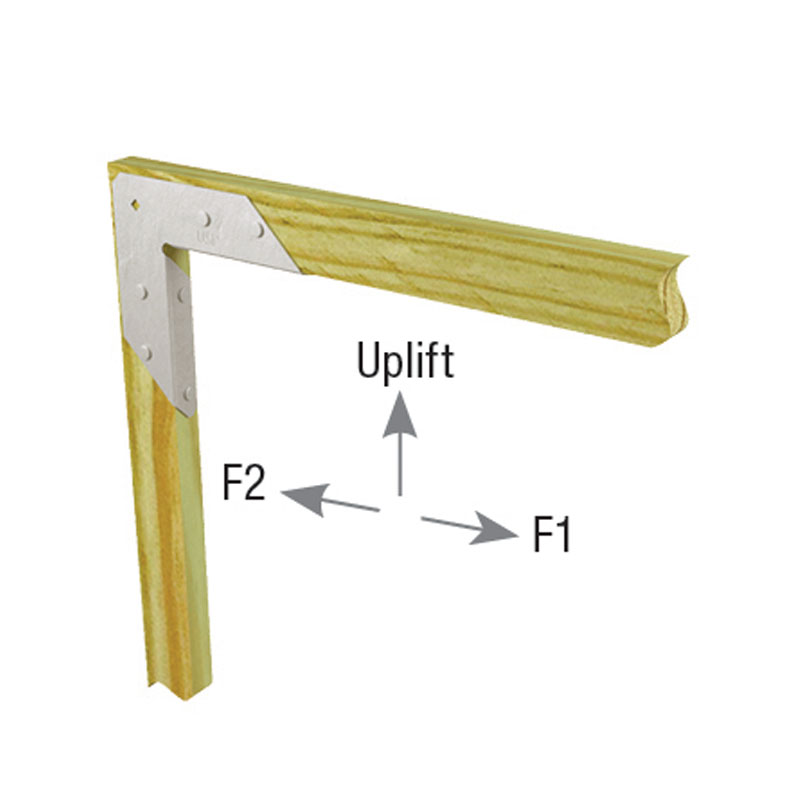

TTA12-TZ Angle (TTA2-TZ Similar)
Option Details:

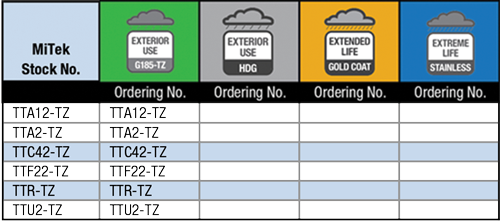

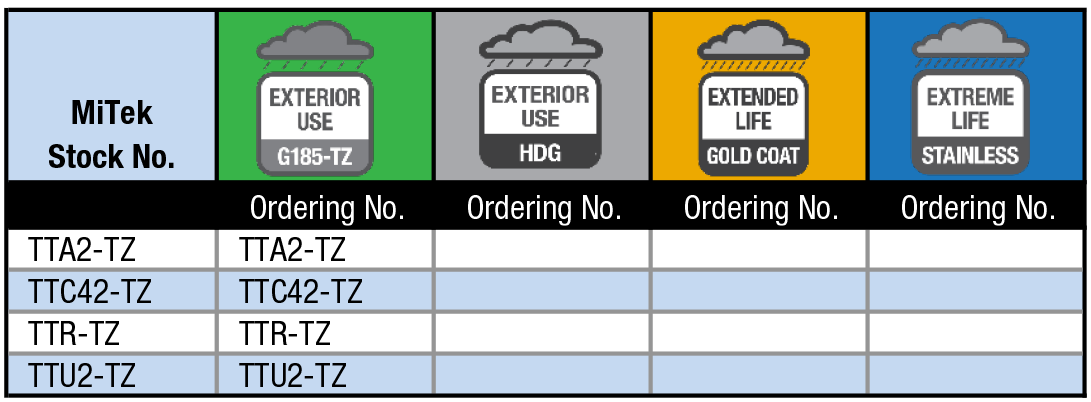

Corrosion Resistant Products Table

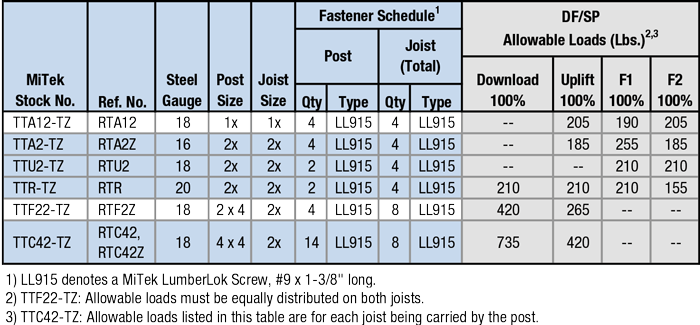

View / Download the above load table as a PDFCode Report Table
TTA12-TZ
TTA2-TZ
Contact us for test data
TTC42-TZ
Contact us for test data
TTF22-TZ
Contact us for test data
TTR-TZ
Contact us for test data
TTU2-TZ
Contact us for test data
Contact us for test data
