Fire Wall Hangers for CFS Construction
Reference Series: -- --
The FWH/S Fire Wall Hanger attaches to cold-formed steel wall framing to support cold-formed steel joists.
Materials: 14 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table
ResourcesMiTek Product Catalog
- Install prescribed type and number of self-drilling screws through the round holes into the wall track. Install (5) self-drilling screws through the hanger into one side of the joist using the round and slotted holes.
- Powder actuated fasteners are permitted.
- Welding of the hangers is permitted. Place a minimum 1/8″ x 2″ fillet weld on each top flange of the hanger. Welding should be performed by a qualified welder using a qualified welding procedure while distributing the weld evenly across both flanges. Weld-on applications produce maximum allowable load listed. Uplift loads do not apply to this application.
Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

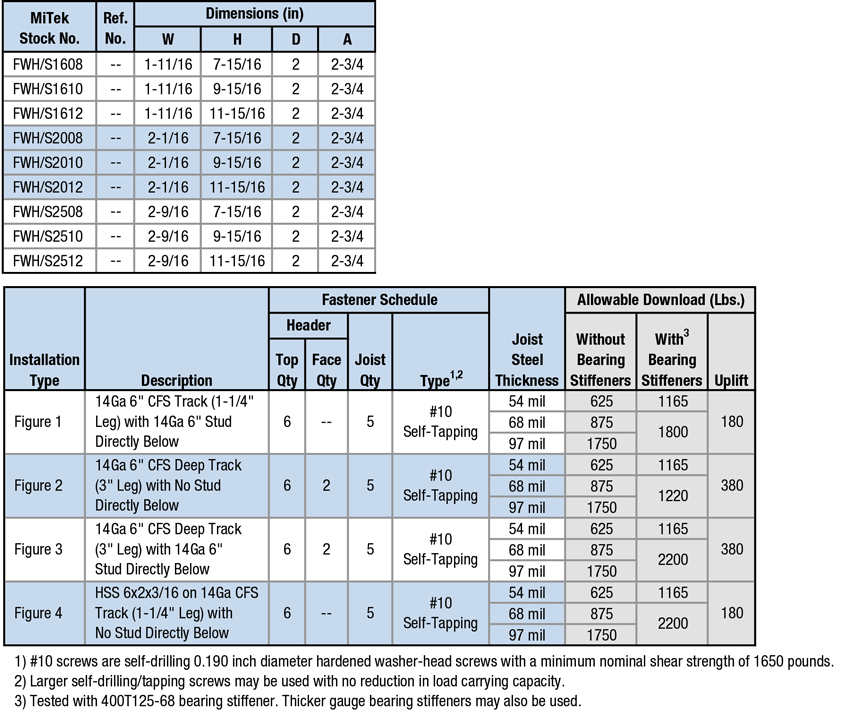

FWH/S Fire Wall Hanger

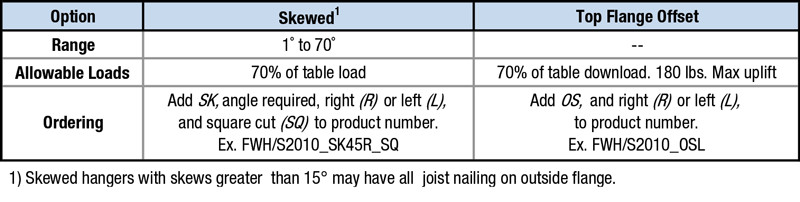

Specialty Options TableView / Download the above load table as a PDF
Code Report Table
MiTek Stock #
No Code Listing
