Concrete and Masonry

Foundation Straps

TA

Reference Series: PA

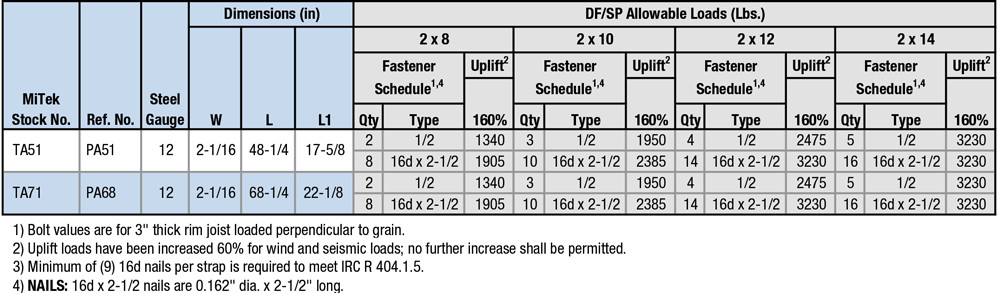

Foundation Straps offer an economical, one-piece method of achieving a continuous load path from a 2x8 to 2x14 dimensional rim joist through concrete block to foundation. All models require a 6" embedment into concrete footings.
Materials: 12 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Allowable loads are based on either nail fastening or bolt fastening; nail and bolt values cannot be combined.
  • Install by inserting product into footing’s wet concrete. All models require a 6″ embedment into concrete foundations. Courses of concrete block must be laid over connector. Notch mudsill at connector locations. Wrap strap over rim joist and fasten.
  • Do not rely on these straps to secure concrete sections together between cold joints; take other measures to transfer the load. If there is a cold joint between block and foundation, the minimum embedment must be made into the foundation.
  • Based on product embedment the exposed number of fastener holes may be reduced. Using fewer fasteners will reduce allowable loads. Reduce allowable loads by the code prescribed allowable load per fastener, for each fastener not installed.
  • Allowable loads are based on a minimum concrete compressive strength of 2,500 psi at 28 days.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

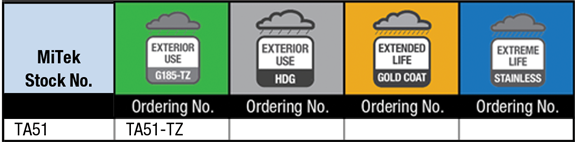

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF

Code Report Table

TA51

No Code Listing

TA51-TZ

No Code Listing

TA71

No Code Listing

TA71-TZ

No Code Listing

High Wind Drawings

MiTek Stock # Download or View Files
TA
Bond/Tie Beam to TrussDWGDXFPDFView Image
TA20
Bond/Tie Beam to TrussDWGDXFPDFView Image
TA51
Foundation Inside ViewDWGDXFPDFView Image
