Post Anchors


Reference Series: ABA, ABU

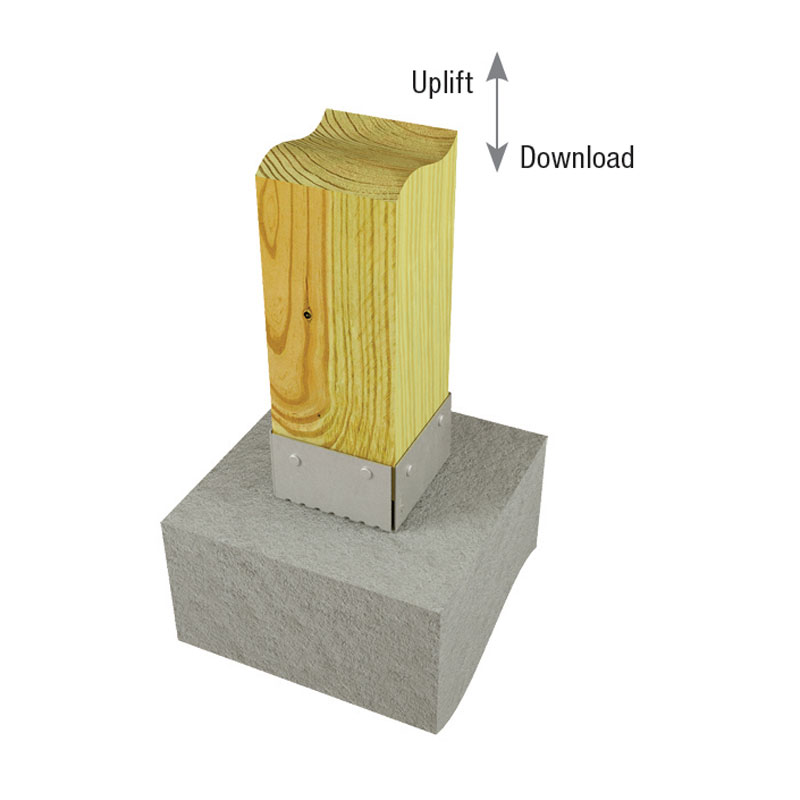

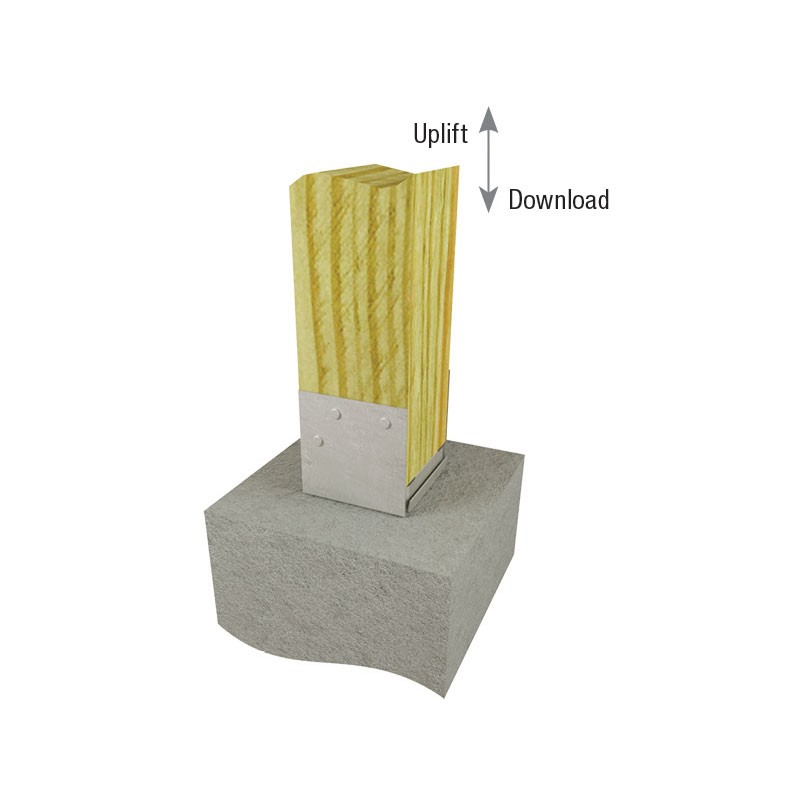

Post Anchors are used to secure wood posts to concrete footings. These post anchors also provide moisture damage protection and feature a 1" stand-off plate to elevate wood posts above concrete surfaces as required by building code.

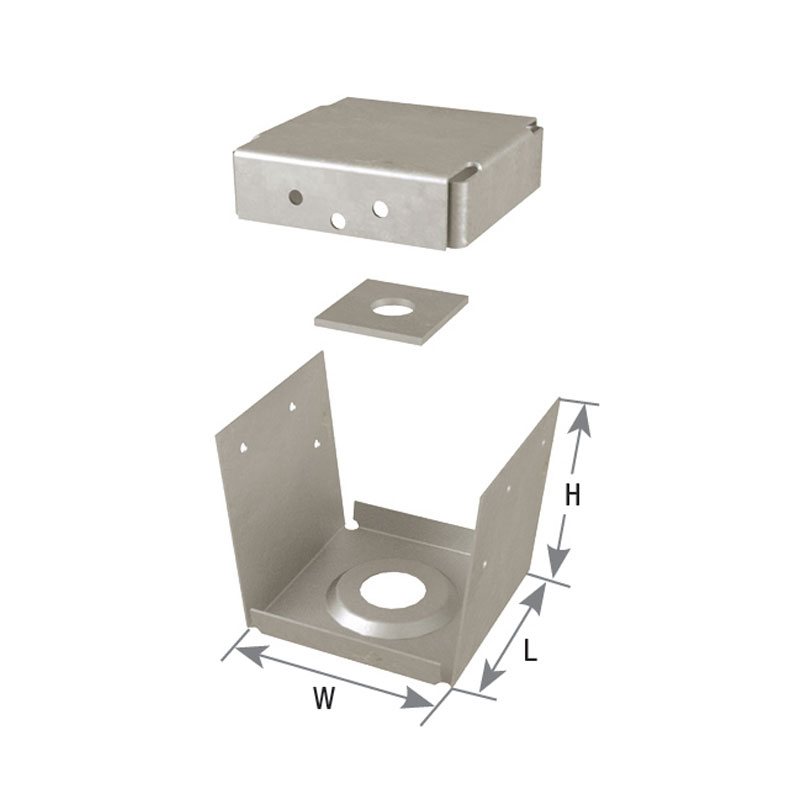

PAE – 2-sided post anchors with high uplift and bearing capacity

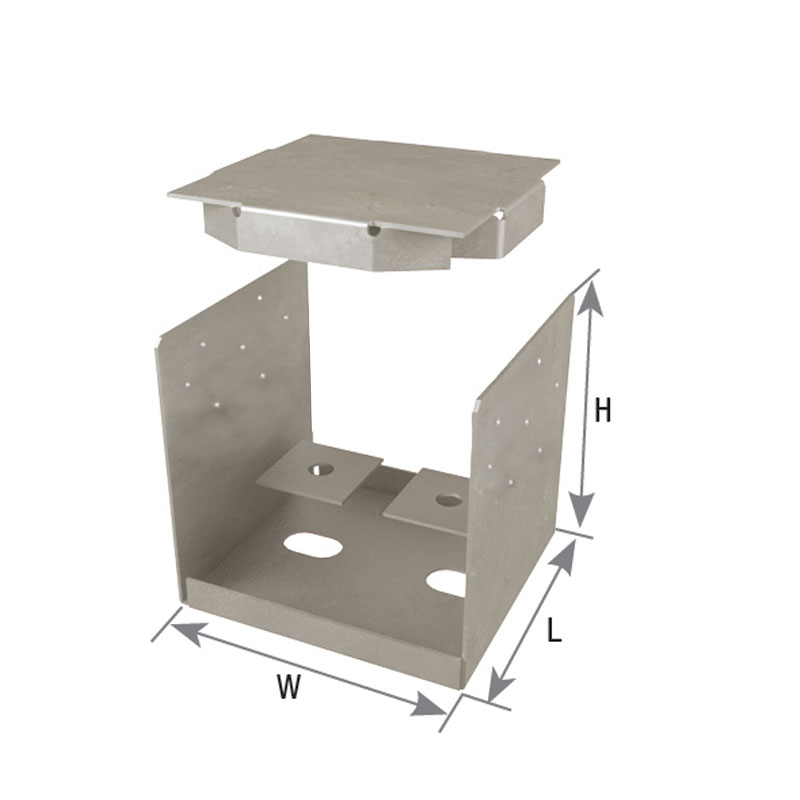

PA – High capacity utilizing 4-sided design

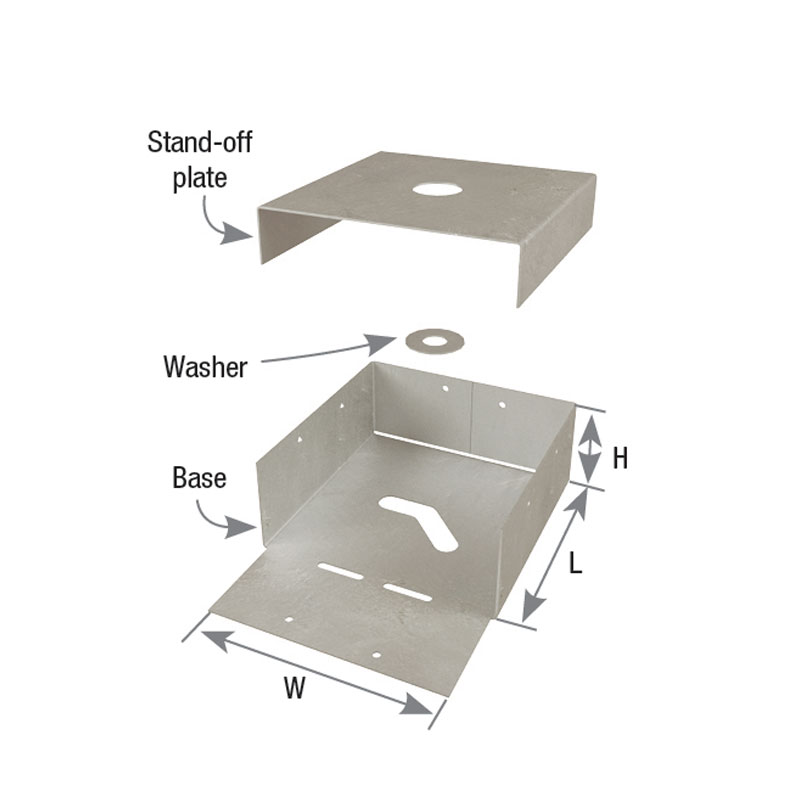

PAF – Innovative one-piece design maintaining a 1” stand-off

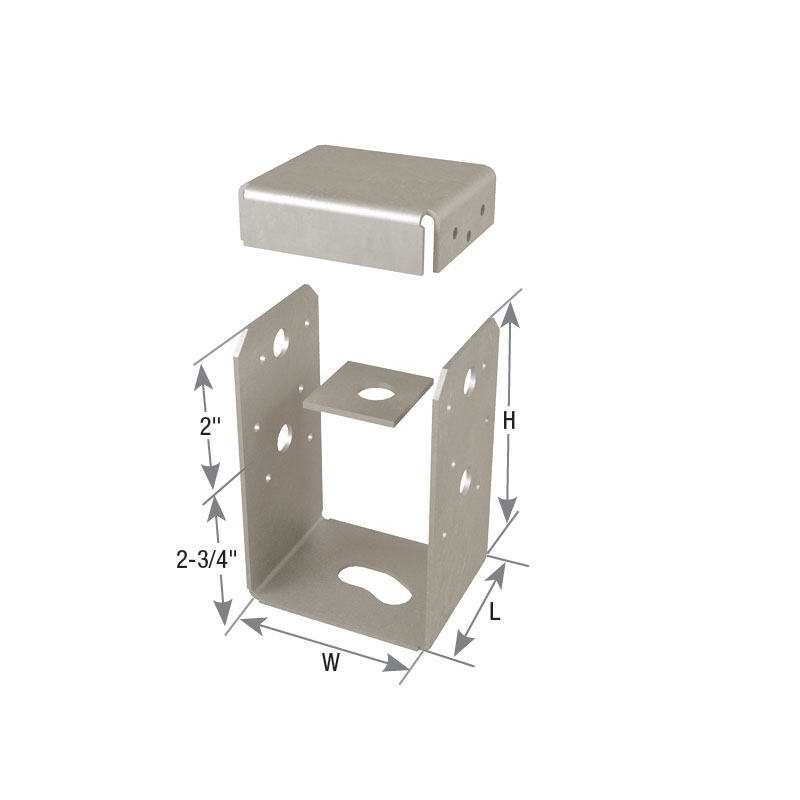

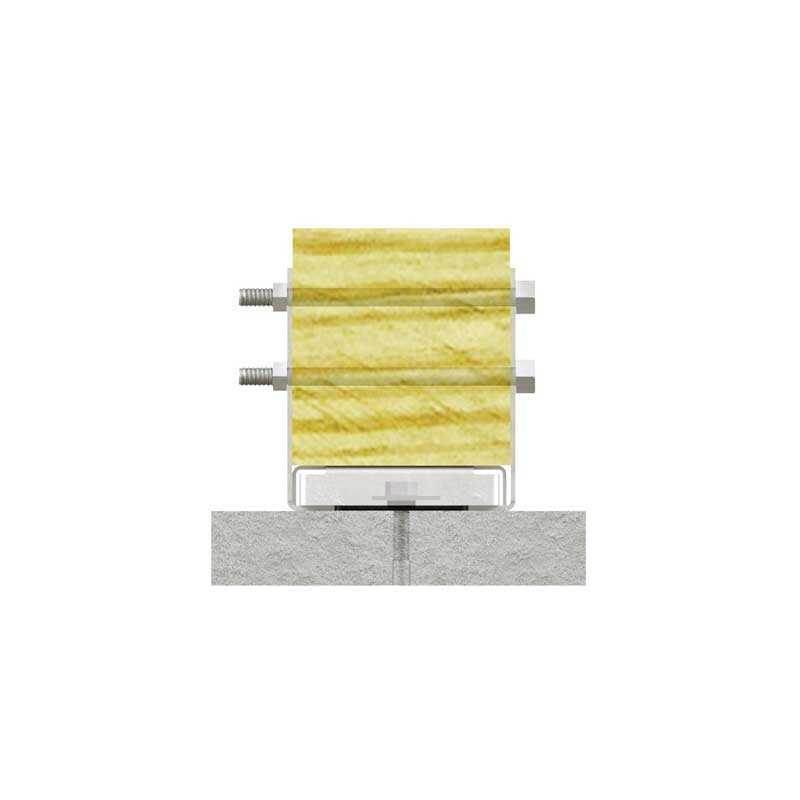

PAU – Higher uplift resistance and optional bolt fastening to post
Materials: See Load Table
Finish: G90 galvanizing, PAF, PA55R-TZ, PAU66R-TZ, PA66ER-TZ – G-185 galvanizing
Code Reports: View Code Report Table


  • Use all specified fasteners. Install with supplied washer.
  • Anchor bolts and nails are not furnished.
  • Not recommended for fence posts or other unrestrained (not fixed or fastened at top) applications. These anchors are not designed to resist overturning (moment) loads.
  • Anchor bolt installation – place specified diameter anchor bolt at desired location with minimum 4″ embedment into minimum 2,500 psi concrete. A minimum 2″ edge distance from the outermost edge of the post base to the edge of the concrete is required to achieve allowable loads.
  • For cured concrete or retrofit installations – use specified diameter threaded rod with adhesive epoxy, following installation instructions. Contact MiTek Engineering for further information on selecting the proper epoxy.
  • Reference IRC R317.1.4, IBC 2304.12.2.2, IRC R407.3, IBC 2304.10.7

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF

Code Report Table


No Code Listing


No Code Listing


No Code Listing


No Code Listing


No Code Listing

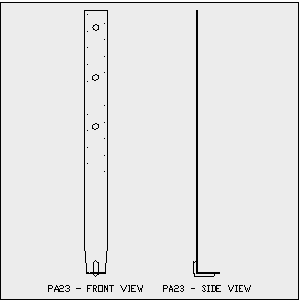

3-View Product Drawings

MiTek Stock # Download or View Files
PA23 DWG DXF PDF View Image

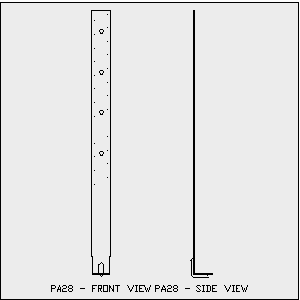

PA28 DWG DXF PDF View Image

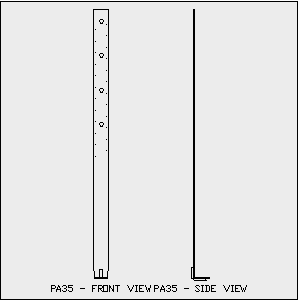

PA35 DWG DXF PDF View Image
PAU44 DWG DXF PDF View Image
PAU46 DWG DXF PDF View Image
PAU66 DWG DXF PDF View Image
