Caps and Bases

Column Bases

KCBQ

Reference Series: CBQ
High capacity column base fastens to column with MiTek's WS structural wood screws.
Materials: 10 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • MiTek’s WS2 structural wood screws, 1/4″ dia. x 2″ long, are supplied with KCBQ Column Bases.
  • Not recommended for fence posts or other unrestrained (not fixed or fastened at top) applications. These bases are not designed to resist overturning (moment) loads.
  • Maintain 3″ minimum edge distance between post and edge of concrete.
  • Embed column base with bottom of base plate flush to concrete.
  • Reference IRC R407.3, IBC 2304.10.7

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

Corrosion Resistant Products Table>KCBQ models available in rough/full sizes.

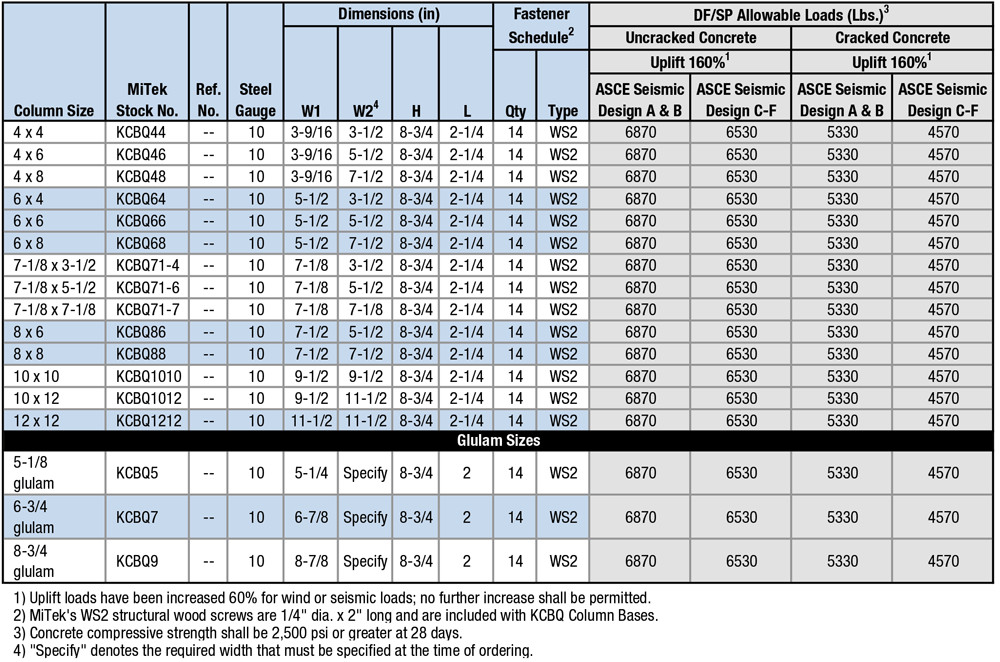

Corrosion Resistant Products Table>KCBQ models available in rough/full sizes. View / Download the above load table as a PDF

Code Report Table

KCBQ1010

No Code Listing

KCBQ1012

No Code Listing

KCBQ1212

No Code Listing

KCBQ44

No Code Listing

KCBQ44-HDG

No Code Listing

KCBQ46

No Code Listing

KCBQ46-HDG

No Code Listing

KCBQ48

No Code Listing

KCBQ5

No Code Listing

KCBQ64

No Code Listing

KCBQ66

No Code Listing

KCBQ66-HDG

No Code Listing

KCBQ68

No Code Listing

KCBQ7

No Code Listing

KCBQ71-4

No Code Listing

KCBQ71-6

No Code Listing

KCBQ71-7

No Code Listing

KCBQ86

No Code Listing

KCBQ88

No Code Listing

KCBQ88-HDG

No Code Listing

KCBQ9

No Code Listing
