Reinforcing and Skewable Angles for CFS Construction

MP-S

Reference Series: S/LS
MP/S angles are field-adjustable to attach members intersecting at angles. MP/S angles are load rated and provide adequate thickness and fastener quantity to the field fabricated clip angles.
Features:
• Field adjustable from 0° to 135°.
• For new construction and retrofit applica tions for steel-to-steel connections.
Materials: 18 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Technical Bulletins

Installation

  • Use all specified fasteners.
  • Field-adjustable from 0°-135°. Bend angle only once.
  • Joist must be constrained from rotation.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

MP/S Top View

MP/S Top View

MP/S Top ViewMP/S5 Skewable AngleMP/S7 Skewable AngleTypical MP/S7 installation (MP/S5 similar)Typical MP/S7 skew installation (MP/S5 similar)

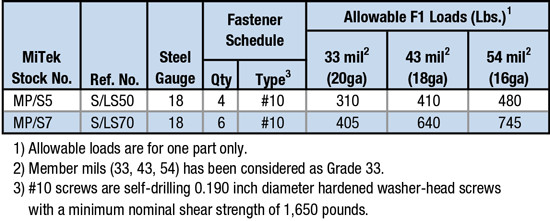

Code Report Table

MP/S5

Contact us for test data

MP/S7

Contact us for test data
