Roof Boundary Clip

RBC

Reference Series: RBC
Framing plate designed to connect roof blocking to a wall top plate.
Materials: 20 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Installation

  • Use all specified fasteners.

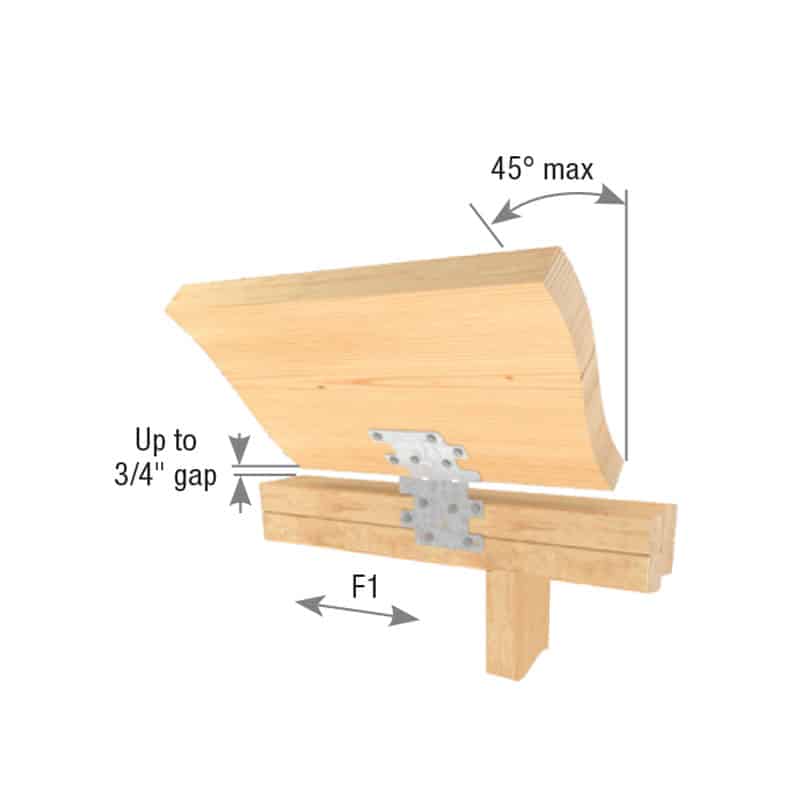

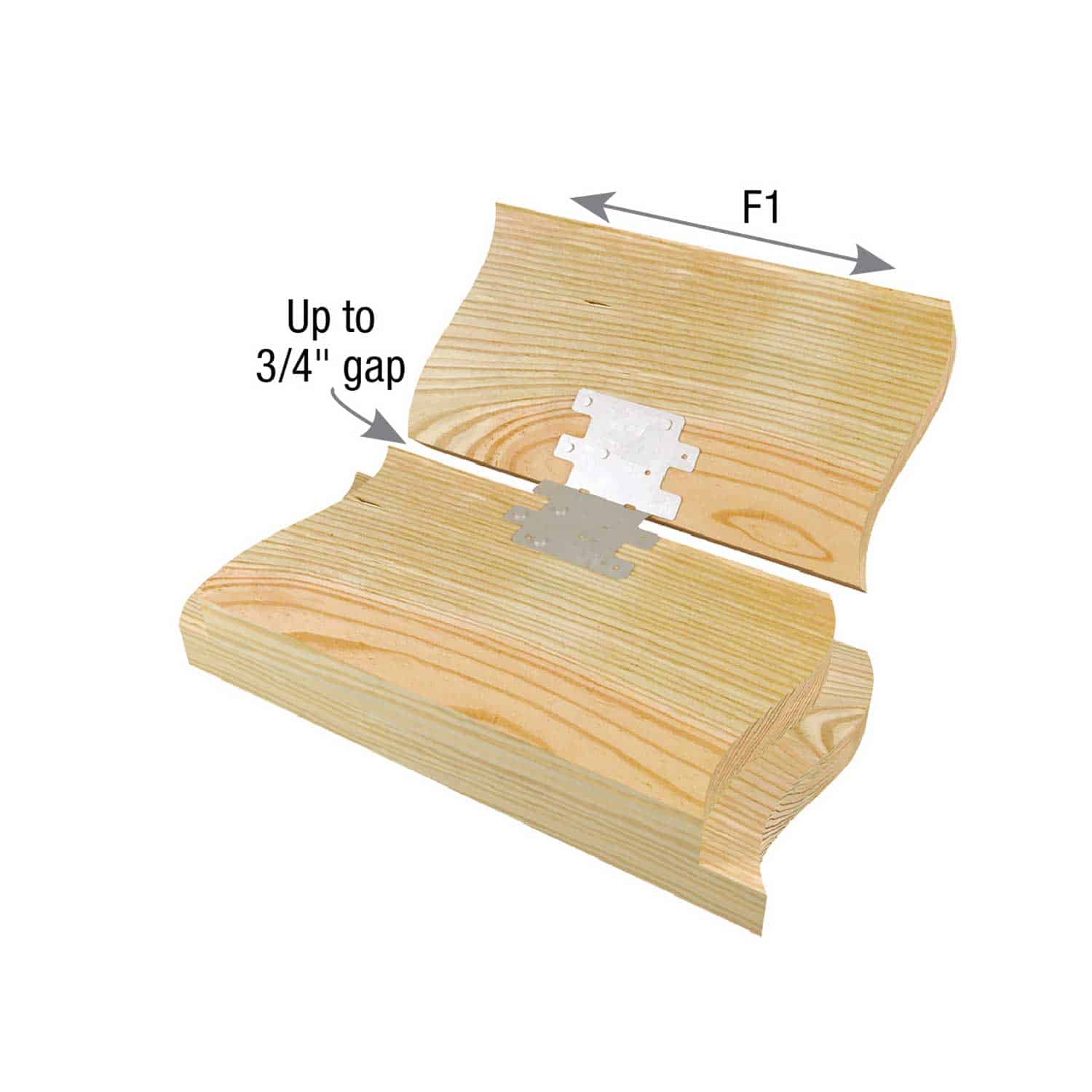

  • Field adjustable from 0° to 45°.
  • Bend angle only once.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

RBC Roof Boundary Clip

RBC Roof Boundary Clip

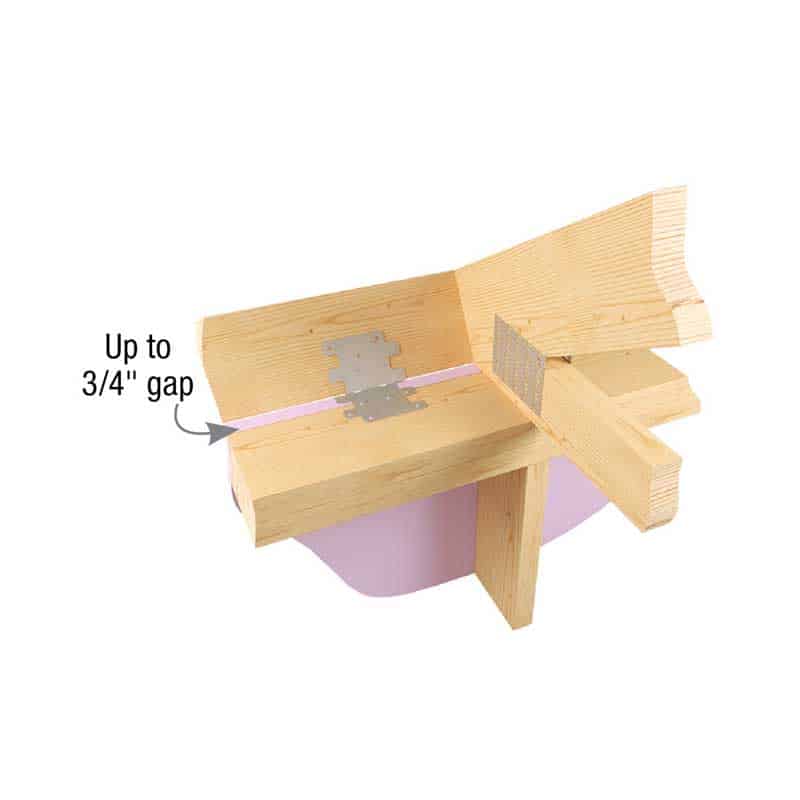

RBC Roof Boundary ClipTypical RBC top-plate to inside of blocking installationTypical RBC concrete block wall to blocking installationTypical RBC top-plate to outside of blocking installationTypical RBC 1" foamboard installation

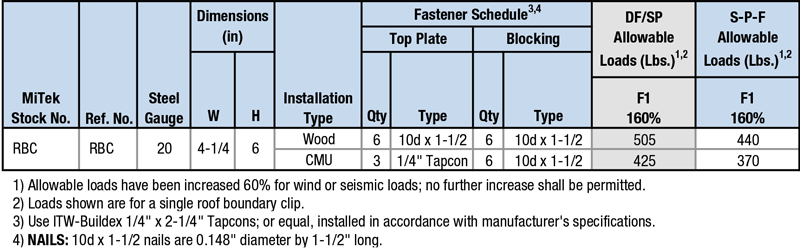

Load Table

-- -- View / Download the above load table as a PDF

Code Report Table

RBC
ESR-4517
FL17227
LABC_ESR-4517

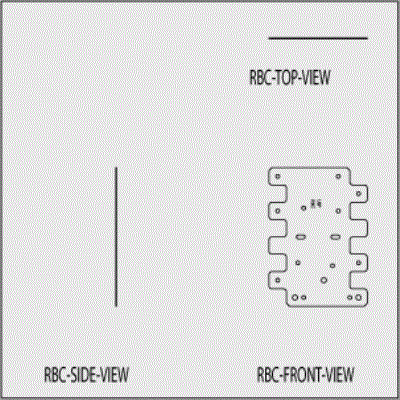

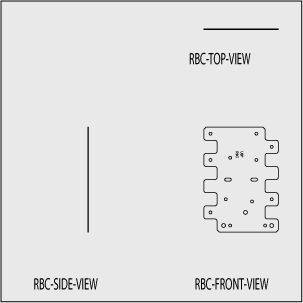

3-View Product Drawings

MiTek Stock # Download or View Files
RBC DWG DXF PDF View Image
