Truss and Rafter Tiedowns

Embedded Truss Anchors

LPTA

Reference Series: LTA2
Low profile design attaches to 2x4 or larger bottom chords and provides uplift and lateral load resistance.
Materials: 18 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Embed LPTA 4-inches into concrete tie beam or masonry bond beam.
  • Anchors should be spaced no closer than 8-inches center-to-center.
  • Moisture barrier may be required.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

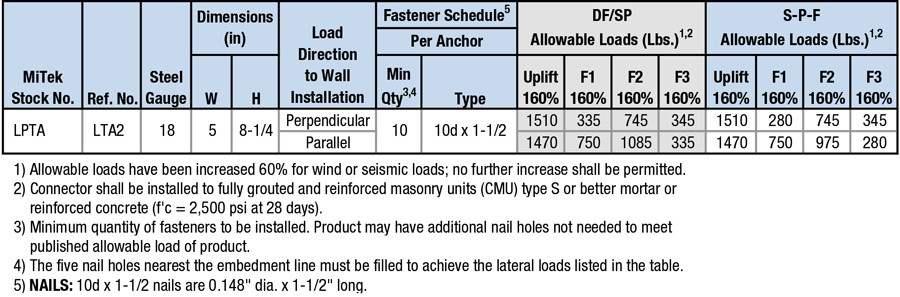

Code Report Table

LPTA

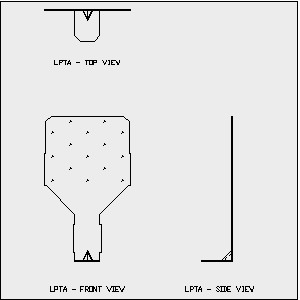

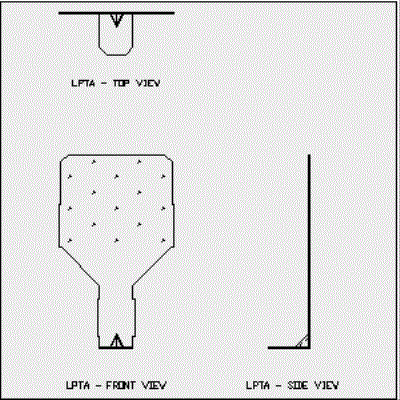

3-View Product Drawings

MiTek Stock # Download or View Files
LPTA DWG DXF PDF View Image
