Solid Sawn Hangers

Ridge Rafter Hanger

RR

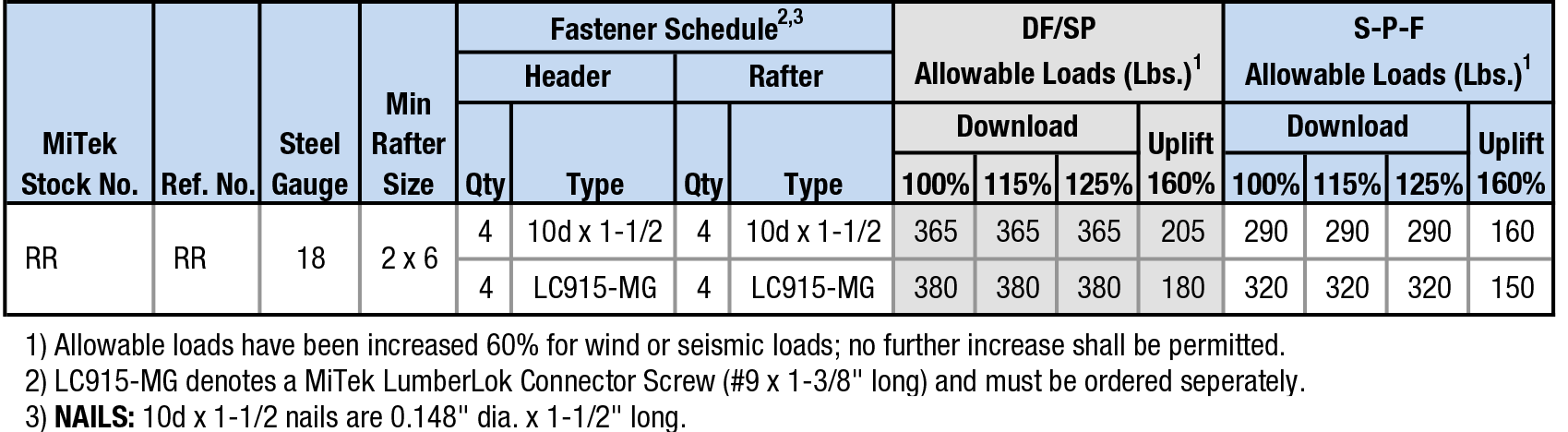

Reference Series: RR
The RR Ridge Rafter supports rafter pitches up to 7:12 (30-degree). Nesting top flange for back-to-back installation on 2x support beams.
Materials: 18 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • The rafter end at the ridge must be plumb cut to achieve published loads.
  • Optional diamond nail holes can be used to fasten RR to end of rafter before setting rafter into place.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Code Report Table

RR

No Code Listing
