Plated Truss

Adjustable Strap Hangers

msh

Reference Series: THA, THAC, THAI

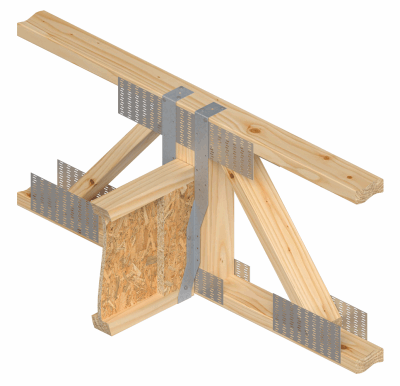

The MSH  is field adjustable. The flanges can be used in top mount, face mount, or combination installations. An open back design allows installation after a member is placed in position.

Materials: See Load Table

Finish: G90 galvanizing

Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Web stiffeners are required for I-Joist installations.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934



Option Details:

Minimum Top Flange Length for Top Mount Installations

Minimum Top Flange Length for Top Mount Installations

View / Download the above option details as a PDF

Corrosion Resistant Products Table

Corrosion Resistant Products Table

View / Download the above option details as a PDF

Code Report Table

USP Stock# ICC-ES IAPMO FLORIDA LA CITY
MSH1713
3444  FL17241 RR 25749
MSH1722
3444  FL17241 RR 25749
MSH213
3444  FL17241 RR 25749
MSH218
3444  FL17241 RR 25749
MSH218-2
3444  FL17241 RR 25749
MSH222
3444  FL17241 RR 25749
MSH222-2
3444  FL17241 RR 25749

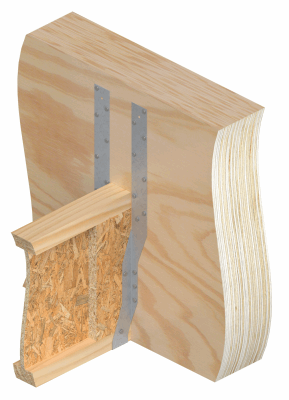

MSH2322
3444  FL17241 RR 25749

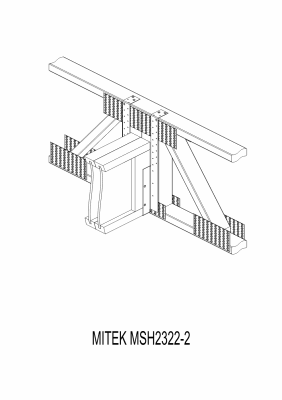

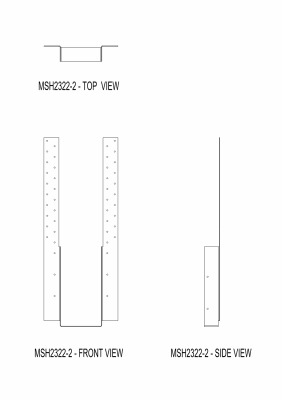

MSH2322-2
3444  FL17241 RR 25749

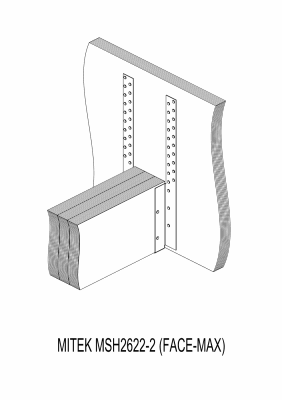

MSH2622-2
3444  FL17241 RR 25749
MSH29
3444  FL17241 RR 25749
MSH322
3444  FL17241 RR 25749
MSH413
3444  FL17241 RR 25749
MSH418
3444  FL17241 RR 25749
MSH422
3444  FL17241 RR 25749
MSH422-2
3444  FL17241 RR 25749
MSH422-2IF
3444  FL17241 RR 25749
MSH422IF
3444  FL17241 RR 25749
MSH422-TZ
3444  FL17241 RR 25749
MSH424
3444  FL17241 RR 25749
MSH426
3444  FL17241 RR 25749
MSH426IF
3444  FL17241 RR 25749

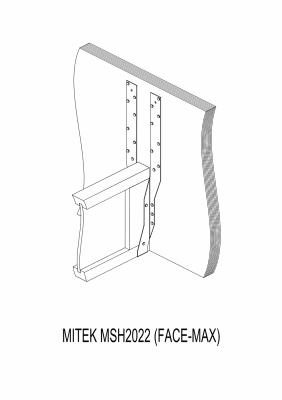

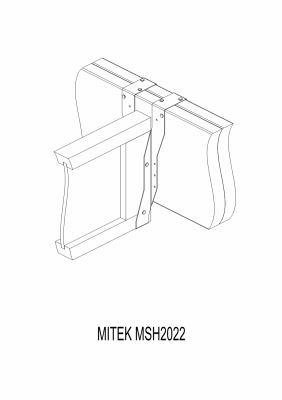

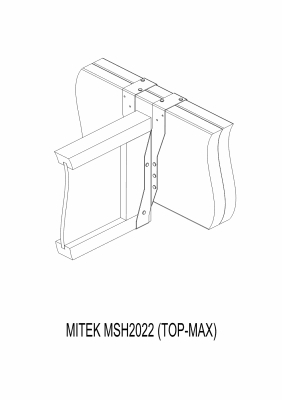

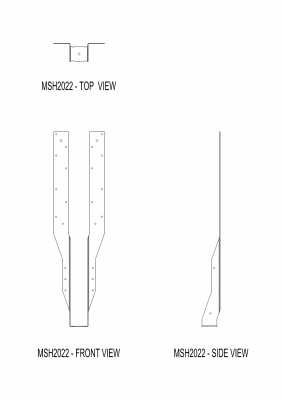

MSH2022
3444  FL17241 RR 25749
MSH426-2
3444  FL17241 RR 25749

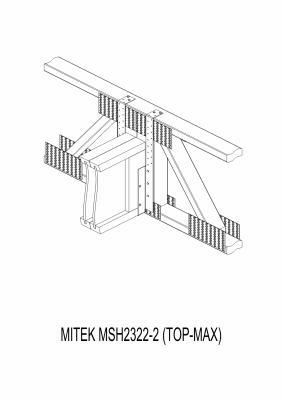

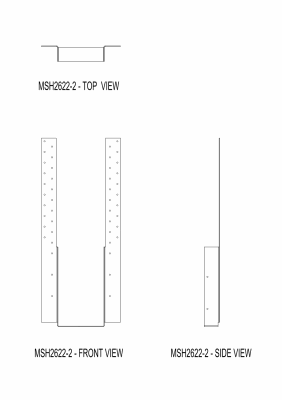

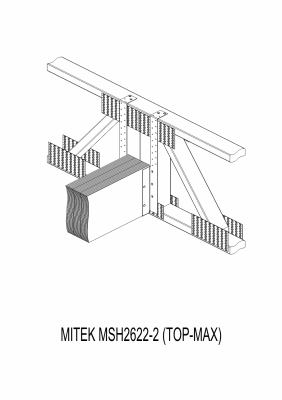

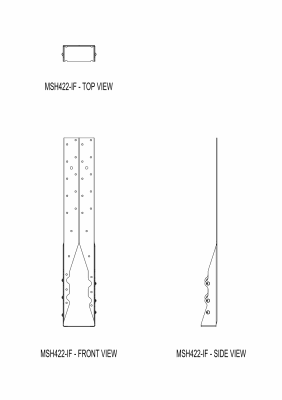

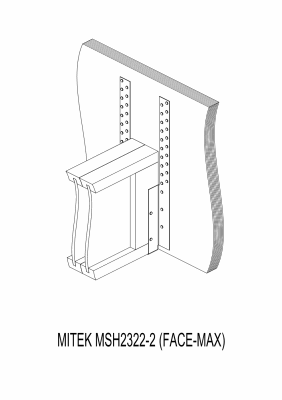

Application Drawings

USP Stock# Download or View Files
MSH

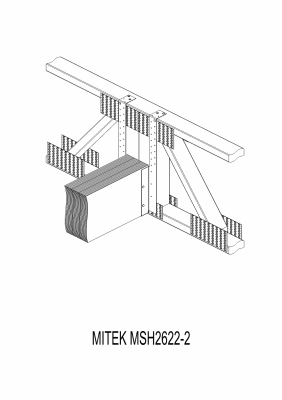

Typical DWG DXF PDF View Image
MSH213
Typical DWG DXF PDF View Image
MSH218
Typical DWG DXF PDF View Image
MSH218-2
Typical DWG DXF PDF View Image
MSH222
Typical DWG DXF PDF View Image
MSH222-2
Typical DWG DXF PDF View Image
MSH29
Typical DWG DXF PDF View Image
MSH322
Typical DWG DXF PDF View Image
MSH413
Typical DWG DXF PDF View Image
MSH418
Typical DWG DXF PDF View Image
MSH422
Typical DWG DXF PDF View Image
MSH422-2
Typical DWG DXF PDF View Image

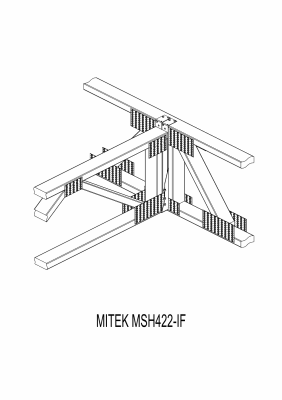

MSH422-2IF
Typical DWG DXF PDF View Image
MSH422IF
Typical DWG DXF PDF View Image
MSH426
Typical DWG DXF PDF View Image

High Wind Drawings

USP Stock# Download or View Files
MSH
Ridge Rafter Tiedown DWG DXF PDF View Image
Bond/Tie Beam to Truss DWG DXF PDF View Image
MSH218
Bond/Tie Beam to Truss DWG DXF PDF View Image
