Holdowns

Holdowns for CFS Construction

TDS

Reference Series: S/HD
The TD8S, TD10S, and TD15S are high capacity holdowns which are designed for attachment to cold formed steel (CFS) framing members. Holdowns are secured at the base by attachment to an anchor bolt.
Materials: See Load Table
Finish: Primer
Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Technical Bulletins

Installation

  • Use #10 self-tapping screws to attach the back or strap portion of the holdown to a steel stud. Install nut to secure the base of holdown to foundation with anchor bolt of specified diameter.
  • A design professional shall specify the type, length, and embedment depth of the anchor bolt.
  • Install anchor bolt nut to base of holdown until finger tight, then tighten an additional 1/3 to 1/2 turns with a wrench.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

TD10S CFS Holdown

TD10S CFS Holdown

TD10S CFS HoldownTypical TD10S installation

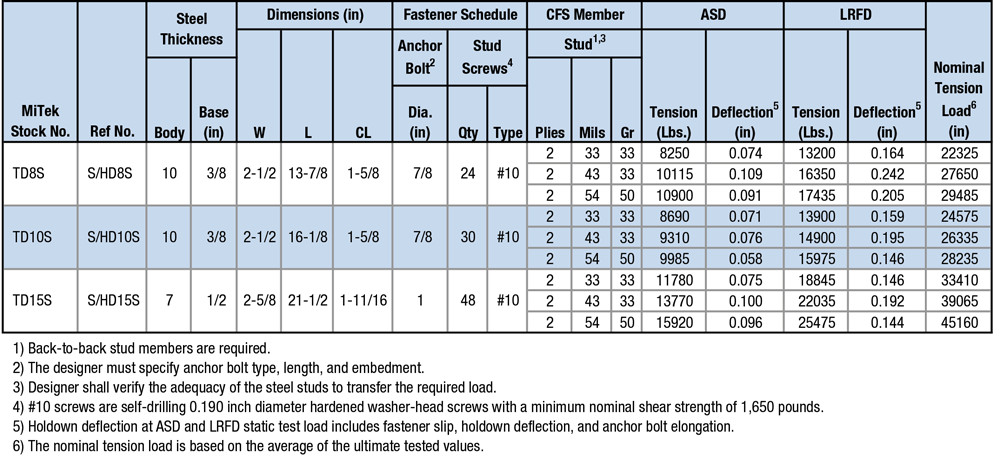

Load Table

-- -- View / Download the above load table as a PDF

Code Report Table

TD10S

No Code Listing

TD15S

No Code Listing

TD8S

No Code Listing
