Reference Series: PGT, PGTIC

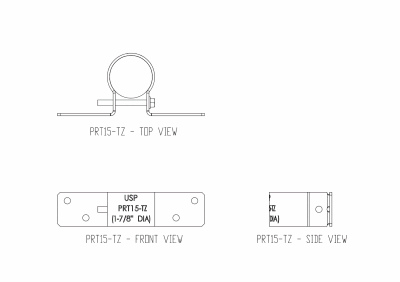

PRT15-TZ – is for 1-5/8" vertical pipe posts (1-7/8" outside pipe diameter). Can be field bent 90-degree for outside corner installations.

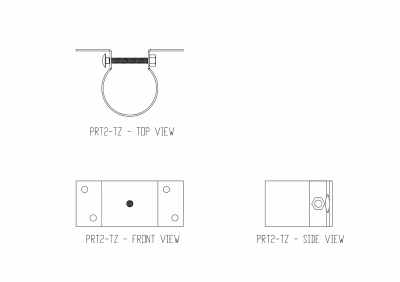

PRT2-TZ / PRT2H-TZ – is for 2" vertical pipe posts (2-3/8" outside pipe diameter). Can be field bent 90-degree for outside corner installations.
PRTIC2-TZ – is for inside corner installations. For 2" vertical pipe posts (2-3/8" outside pipe diameter).

Materials: See Load Table

Finish: G-185 galvanizing

Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • Install self tapping bolts with 3/8" socket in predrilled holes.
  • Install 3 to 4 PRT's per pipe.
  • PRT15-TZ, PRT2-TZ and PRT2H-TZ may be bent once to fit corner and angled conditions.
  • PRT2-TZ fastens with (1) 1/4" carriage bolt and nut (included) for tightening PRT2-TZ to pipe and (4) 1/4" HDG lag bolts for attaching tie to rail.
  • Self Tapping Bolts are supplied with PRT15-TZ, PRT2H-TZ, PRTIC2-TZ models.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934



Option Details:

Corrosion Resistant Products Table

Corrosion Resistant Products Table

View / Download the above option details as a PDF

Code Report Table

MiTek Stock# ICC-ES IAPMO FLORIDA LA CITY
PRT15-TZ
Non-Structural: Product is not load rated and does not require code evaluation.
PRT2H-TZ
Non-Structural: Product is not load rated and does not require code evaluation.
PRT2-TZ
Non-Structural: Product is not load rated and does not require code evaluation.
PRTIC2-TZ
Non-Structural: Product is not load rated and does not require code evaluation.

Application Drawings

MiTek Stock# Download or View Files
PRT2-TZ
Typical DWG DXF PDF View Image
