Concrete and Masonry

Wall Tie

WT

Reference Series: WT
The WT wall ties are used for securing brick facade walls to a wooden structural panel. They are installed in the brick mortar joint and attached to the wooden sheathing with 10d nails. They are 6-1/2" long which provides up to a one inch space between the brick wall and sheathing. Check with your local Building Official for minimum spacing requirements.
Materials: 22 gauge
Finish: G90 galvanizing
Code Reports: View Code Report Table

Installation

  • Use nails appropriate for intended use.
  • The opposite end must be bonded in the mortar joint of brick facade.
  • Check local codes for spacing requirements.
  • Wall tie shall be bent at nail, bonding into mortar joint.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

Option Details:

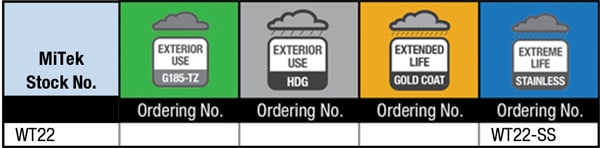

Corrosion Resistant Products Table

Corrosion Resistant Products Table View / Download the above load table as a PDF

Code Report Table

WT22

Product meets Prescriptive Code Requirements

WT22-SS

No Code Listing
