Foundation Anchors

ST

Reference Series: MAB

ST1-TZ – For installation into concrete slab or poured stemwalls. The ST1-TZ features a prebent base flange to assure proper anchoring into concrete.
ST2-TZ – For installation into concrete slab, poured stemwalls or concrete/masonry. The ST2-TZ features a prebent base flange to assure proper anchoring into concrete.

Materials: 18 gauge

Finish: G-185 galvanizing

Code Reports: View Code Report Table

Resources

MiTek Product Catalog

Options

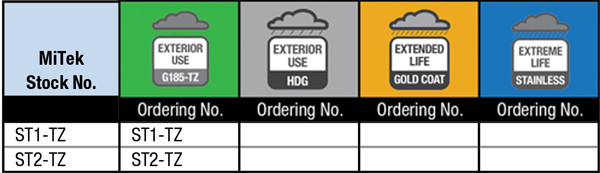

Corrosion Resistant Products Table

Technical Bulletins

Installation

Use all specified fasteners.
Use a minimum of two anchors per mudsill. An anchor should always be within 12″ of the end of each mudsill section. Follow spacing guidelines in load table.
Do not rely on these anchors to secure concrete sections together between cold joints.
Spread sill flanges to mudsill width prior to insertion into wet concrete (minimum strength of 2,500 psi). Alternate installation is possible by inserting unbent flanges through 3/4″ center hole pre-drilled in mudsill. Foundation anchors may also be attached to mudsill and then inserted into wet concrete. When installing ST2-TZ into concrete block, fill cells with grout with a minimum strength of 2,500 psi. Concrete block edges may need to be beveled to facilitate installation.
ST2-TZ in masonry construction shall be installed in the core of the block and grouted with concrete grout designed for that purpose. In no case, shall they be installed in a mortar joint.
Do not use in red clay brick.
