Concrete and Masonry

Anchor Bolts

ab

Reference Series: -- --

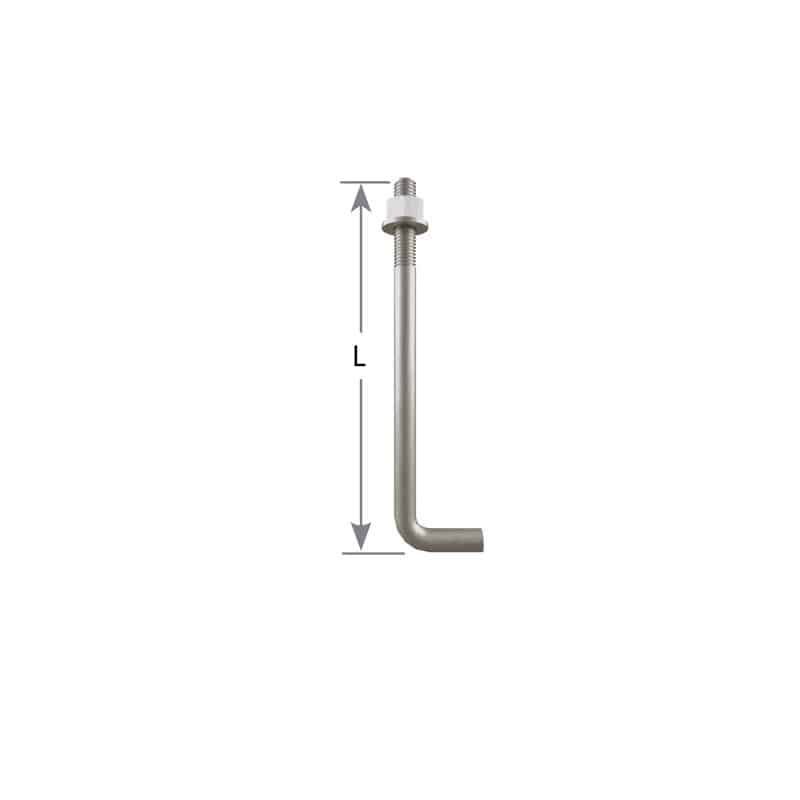

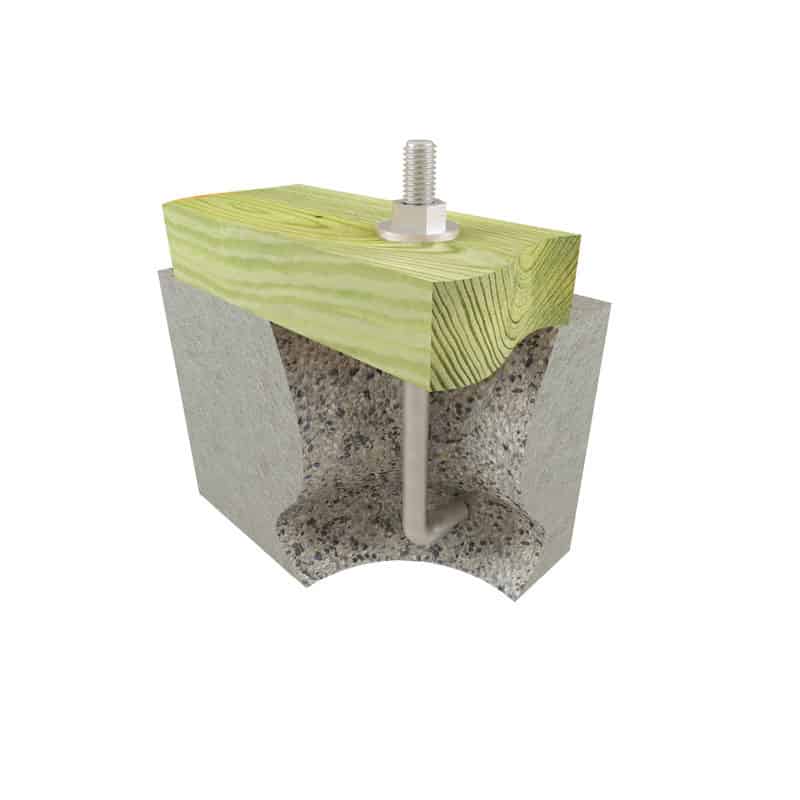

The AB anchor bolt provides an economical way to meet the prescriptive requirements of the 2015 IRC for securing mudsill plates to a concrete or masonry foundation. The bolt is manufactured from ASTM 1554 steel and has a hot-dip galvanized finish. A nut (ASTM A 563) and washer (ASTM F 844) are included.
Note:> In some jurisdictions, a plate washer may be required. Check with your local Building Official.

Materials: Bolt: ASTM F 1554; Nut: ASTM A 563; Washers: ASTM F 844

Finish: Hot-dip galvanized

Code Reports: View Code Report Table

Installation

  • Select appropriate AB Anchor Bolt.
  • Use concrete with minimum compressive strength of 2,500 psi at 28 days.
  • Nuts and washers are included.
  • Anchor bolts intended for use to satisfy code prescribed anchoring of mudsill plates, and shall be installed as defined in the code.
  • Allowable loads shall be derived in accordance with the code.
  • Plate washers may be required in some regions.
  • Reference IBC 2308.6, 2308.12.8, 2308.12.9 for minimum diameter and embedment into masonry or concrete.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934



Option Details:

Corrosion Resistant Products Table

Corrosion Resistant Products Table

View / Download the above option details as a PDF

Code Report Table

USP Stock# ICC-ES IAPMO FLORIDA LA CITY
AB1212-HDG
Product meets Prescriptive Code Requirements
AB126-HDG
Product meets Prescriptive Code Requirements
AB128-HDG
Product meets Prescriptive Code Requirements
AB5812-HDG
Product meets Prescriptive Code Requirements
