hfs

Reference Series: -- --
The HFS Hardy Frame® Saddle is a 14 gauge steel channel intended to be used as a splice at locations where plumbing or other vertical penetrations destroy the structural integrity of a walls top plates.

Materials: 14 gauge

Finish: G60 galvanizing

Code Reports: View Code Report Table

Installation

  • Use all specified fasteners.
  • The Saddle can be installed over the top or from the underside of the top plates, and is capable of resisting both tension and compression loads in a clearspan of up to 4-1/2" inches.
  • For wall depths greater than 3-1/2", or to install after plumbing lines have been run, the product can be separated into two “L" shapes by gripping the legs of the channel and flexing the top surface along the serration lines.

Need Help or Have a Question? Contact Customer Service or Call 800-328-5934

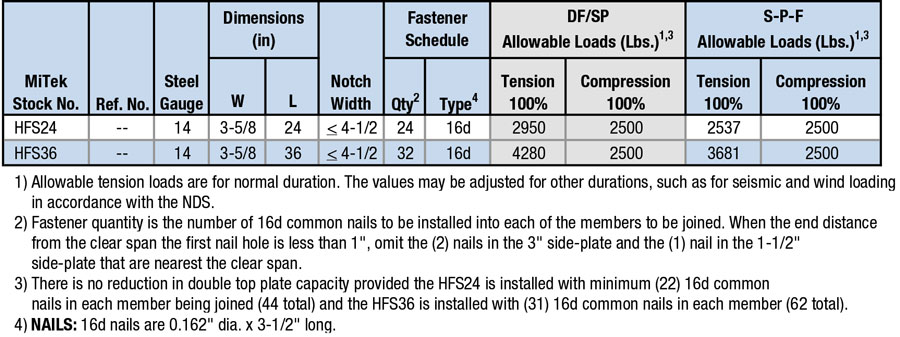

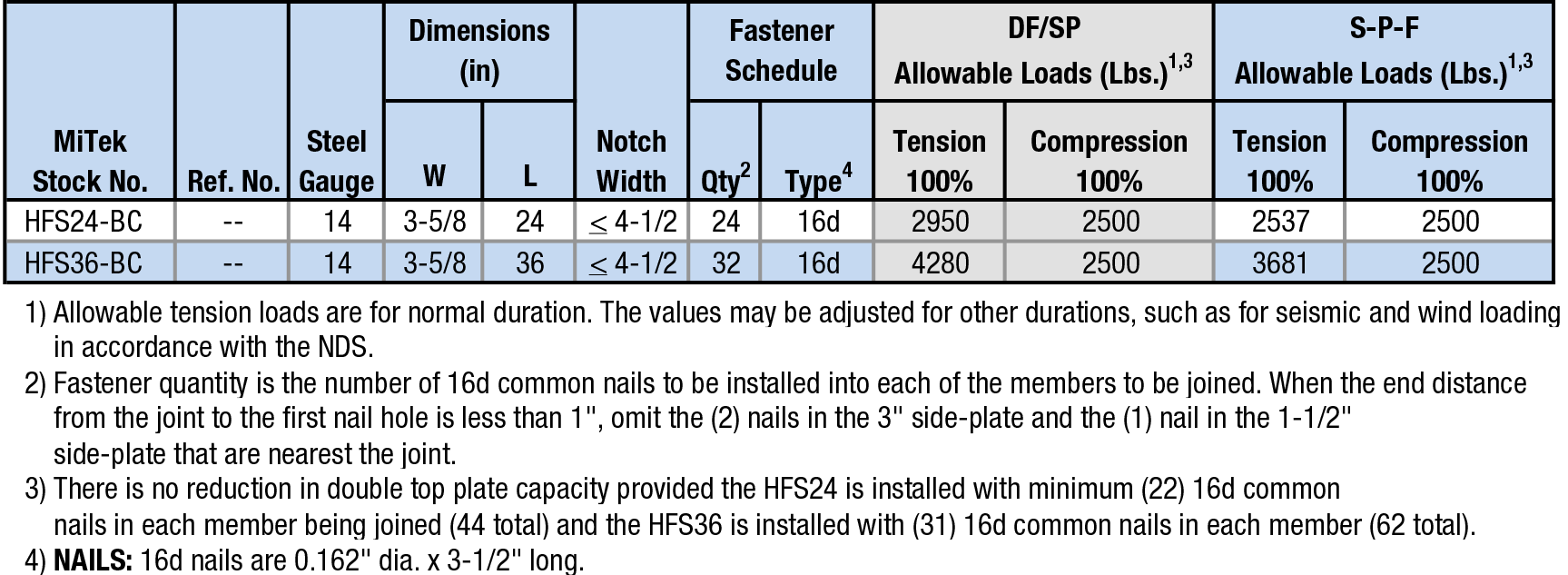

Code Report Table

USP Stock# ICC-ES IAPMO FLORIDA LA CITY
HFS24
2089
HFS36
2089

Application Drawings

USP Stock# Download or View Files
HFS
Typical DWG DXF PDF View Image
